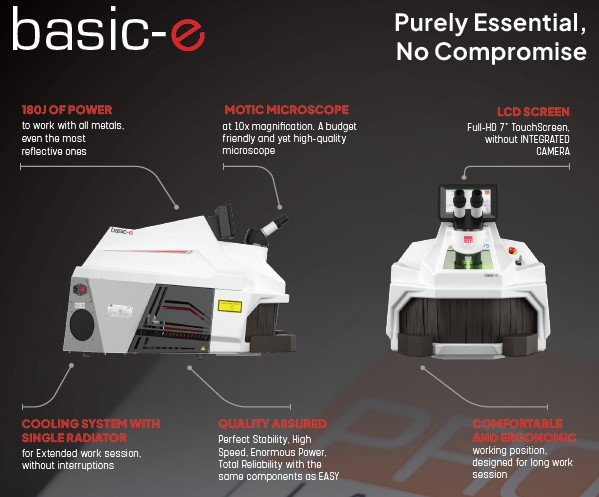

Basic-E.
Introducing the bench-top laser welder for precious metals that covers the essentials with no compromise.
180j of power
To work with all metals even the most reflective ones
Motic Microscope
At 10x magnification. A budget friendly and yet high quality microscope.
LCd Screen
Full-HD 7” TouchScreen, without integrated camera.
cooling system with single radiator
For extended work sessions, without interruptions.
Quaility Assured
Perfect stability, high speed, enormous power, total reliability with the same components as EASY.
Comfortable and ergonomic
Working position, designed for long work sessions.
Pricing
ProLaser™ Welder Basic-E - Є10,875.00 excluding GST and local freight from Brisbane.
Specifications
Laser Source: Nd: YAG
Wave Length: 1064nm
Average Power: 95W
Power Peak: 7.0kW
Max Energy: 180 Joule
Pulse Frequency: up to 20Hz
Pulse Duration: 0.1 ÷ 25 mS
Spot Dimension: 0.2 ÷ 2.0mm (0.1mm Optional)
External Control: 7” LCD TouchScreen Joystick
Max Working Temperature: 39°C
Power Requirements: 1-Ph, 220/230 VAC, 50/60 Hz, 10A
Cooling System: Forced Air & Single Radiator 6L
Size (WxDxH): W 57 x D 92 x H 66cm
Net Weight: 49kg
